الامونيوم is the backbone of modern engineering—prized for being lightweight, cost-effective, and easy to machine. However, in its raw state, aluminum is relatively soft and susceptible to abrasion and corrosion. If you are designing parts for aerospace, defense, or high-performance automotive systems, you need a surface that can withstand extreme environments.
How do you make aluminum as tough as tool steel? The answer is hard coat anodizing.
Why Hard Coat Anodizing Matters
Hard coat anodizing, scientifically known as Type III anodizing, is the gold standard for durability. While standard anodizing is often used for a pop of color on a consumer electronic device, hard coat anodizing is a heavy-duty electrochemical process that transforms the surface of an aluminum part into a thick, ceramic-like oxide layer.
This isn’t just a coating that sits on top of the metal like paint or powder coat. Hard coat anodizing is a “conversion coating,” meaning it integrates with the base material, creating a bond that is nearly impossible to peel or flake. For engineers, this process is the secret to utilizing the weight benefits of aluminum while achieving the surface hardness of hardened steel.

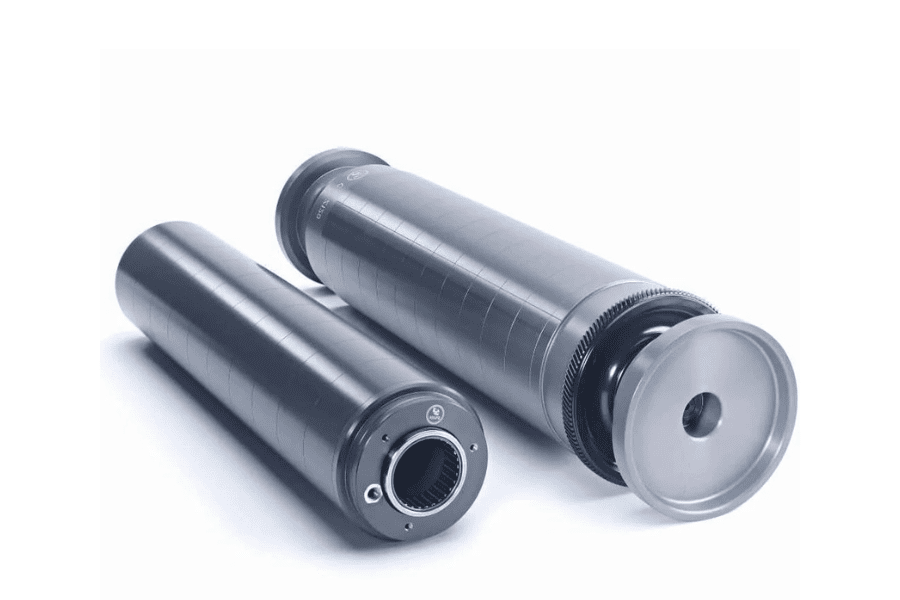

ما هو الطلاء الصلب المؤكسد؟
To understand hard coat anodizing, we must look at the specifications that govern it. The most recognized standard in the industry is MIL-A-8625, specifically Type III. In recent years, this has been updated under the performance specification MIL-PRF-8625, though many machine shops still refer to the “MIL-A” legacy.
Thickness: The Defining Factor
The primary difference between Type II (standard) and Type III (hard coat) is thickness.
Type II Anodizing: Typically ranges from 0.0001” to 0.0006”.
Hard Coat Anodizing: Reaches thicknesses between 0.0005” and 0.003”.
Standard hard coat is usually targeted at 0.002” (50 microns). This increased thickness provides the “reservoir” of material needed to resist heavy wear and mechanical stress.
صلابة السطح
On the Vickers Hardness scale, a hard-coated surface typically measures between 400 and 600 HV. To put that in perspective, this surface is harder than many stainless steels and approaches the hardness of some gemstones. This hardness is what provides the incredible scratch resistance required for gears, pistons, and sliding mechanisms.

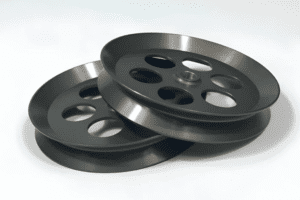

How the Hard Coat Process Works
Hard coat anodizing is an advanced version of the standard electrolytic process, but it requires much tighter control over variables like temperature and voltage.
The Chemistry of the Bath
The process takes place in a sulfuric acid bath. However, unlike Type II, which happens at room temperature, the Type III bath is chilled to near-freezing temperatures—typically between 32°F and 50°F.
The cold temperature is critical because it slows down the acid’s tendency to re-dissolve the oxide layer as it forms. This allows the layer to grow much denser and harder than it would in a warmer bath.
تفصيل خطوة بخطوة:
1.Pre-treatment: Parts are cleaned to remove oils and then “etched” in an alkaline solution to remove the natural oxide film. This ensures the new hard coat grows uniformly.
2.Electrolytic Bath: The part acts as the anode (positive electrode) in the circuit.
3.Voltage Ramping: As the oxide layer grows, it becomes an electrical insulator. To keep the process going, the power supply must “ramp up” the voltage—often reaching up to 100V—to push the current through the increasingly thick coating.
4.Optional Sealing: After the bath, the part has a porous surface. Hydrothermal sealing (hot deionized water) or chemical sealing (nickel acetate) can be used to close these pores. However, many engineers skip sealing for hard coats because unsealed surfaces offer slightly better wear resistance and a lower coefficient of friction.
الفوائد الرئيسية للتطبيقات الصناعية
Why spend the extra time and money on Type III? The performance benefits are transformative.
مقاومة شديدة للتآكل
Because the surface is essentially a layer of sapphire-hard aluminum oxide, it is ideal for abrasive environments. If your part involves metal-on-metal sliding or is exposed to grit and sand, hard coat anodizing prevents the “galling” or seizing common with raw aluminum.
الحماية من التآكل
Hard coat anodizing provides an airtight barrier. When properly processed, Type III parts can survive thousands of hours in salt-spray tests. This makes it a requirement for marine hardware and subsea equipment.
Electrical Insulation (Dielectric Strength)
Aluminum oxide is a non-conductive ceramic. A hard-coated part acts as a natural insulator with high dielectric strength. This is perfect for electronic housings where you want to prevent short circuits or “arcing” between internal components.
الاستقرار الحراري
Unlike organic coatings (like paint), a hard coat will not melt or peel when exposed to heat. It remains stable at high temperatures, which is why it is frequently used on engine components and heat sinks.
Hard Coat vs. Standard Anodizing: Which Do You Need?
Choosing between the two depends on whether your priority is “looking good” or “working hard.”
الميزات | النوع الثاني (القياسي) | النوع الثالث (الطبقة الصلبة) |
الهدف الأساسي | Aesthetics / Color / Mild Protection | Wear Resistance / Durability |
سماكة | Thin (.0001” – .0006”) | Thick (.0005” – .003”) |
عسر الماء | معتدل | Extreme (Ceramic-like) |
مظهر | Bright, vibrant, clear | رمادي غامق، برونزي، أو أسود |
التكلفة | أقل | Higher (due to cooling/energy) |
تطبيقات الصناعة
الفضاء والدفاع: Used for landing gear, valve bodies, and structural components that face atmospheric friction.
الطبية: Surgical tools often use hard coat because it can withstand repeated autoclave sterilization without degrading.
خدمة الطعام: Because it is non-toxic and incredibly hard to scratch, it is used in commercial-grade cookware and food-processing machinery where “flaking” into the food supply is not an option.
Conclusion: Getting Your Parts Hard Coated
Hard coat anodizing (Type III) is the ultimate upgrade for aluminum components. It provides a level of protection that allows lightweight aluminum to compete with heavy steels and expensive alloys in the most demanding environments on Earth.
Are you ready to start your next hard coated anodizing project? Contact our engineers today to help you quickly bring your project to completion.
الأسئلة الشائعة (FAQs)
Q: Can hard coat anodizing be applied to all aluminum alloys?
A: While most aluminum alloys can be anodized, the results vary significantly.
Q: Is it possible to achieve a bright, decorative color with hard coat anodizing?
A: Generally, no. Because the Type III process involves high voltage and low temperatures, the resulting oxide layer is very dense and naturally dark (ranging from dark gray to bronze).
Q: Does hard coat anodizing change the size of my part?
A: Yes. If you specify a 2-mil (.002”) coating, your part’s external dimensions will grow by 1 mil (.001”) per surface. Engineers must account for this “growth” when calculating tolerances for mating parts and threaded holes.
