Whether you are designing a high-speed transmission gear or a simple mounting bracket, the debate often boils down to two heavyweight contenders: AISI 1018 and AISI 4140 steel.
This article provides a deep-dive comparison into 1018 vs. 4140 steel to help you determine which alloy belongs in your next bill of materials.
Understanding the Composition: 1018 vs. 4140 Steel
To understand the performance differences, we first have to look at what’s inside the ladle. Steel is essentially an alloy of iron and carbon, but the addition of specific alloying elements changes its personality entirely.
AISI 1018: The Low-Carbon Standard
AISI 1018 is a “mild” or low-carbon steel. It is characterized by its simplicity. It contains just enough carbon to offer decent strength but stays lean enough to remain incredibly ductile and easy to work with. It lacks significant amounts of alloying elements like chromium or molybdenum, which keeps the cost low and the predictability high.
AISI 4140: The “Chromoly” Powerhouse
AISI 4140 belongs to the family of low-alloy steels, often referred to in the industry as “chromoly” steel. As the name suggests, it is infused with Chromium and Molybdenum. These elements are game-changers; they allow the steel to be hardened through heat treatment and significantly improve its resistance to impact and fatigue.
Chemical Composition Comparison
Element | AISI 1018 (%) | AISI 4140 (%) |
Carbon (C) | 0.15 – 0.20 | 0.38 – 0.43 |
Manganese (Mn) | 0.60 – 0.90 | 0.75 – 1.00 |
Chromium (Cr) | N/A | 0.80 – 1.10 |
Molybdenum (Mo) | N/A | 0.15 – 0.25 |
Iron (Fe) | Balance | Balance |

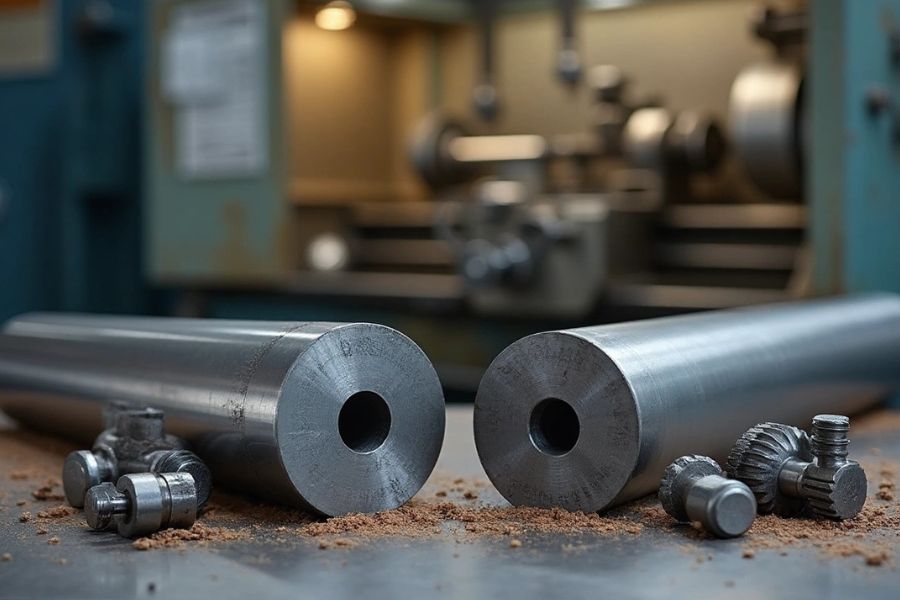

1018 Steel Yield Strength
When engineers talk about the “limits” of a material, they are usually referring to yield strength—the point at which the metal permanently deforms and won’t snap back to its original shape.
The 1018 steel yield strength is one of its most critical metrics for designers. Because 1018 is frequently processed through cold drawing, its strength is actually higher than standard hot-rolled mild steel.
Yield Strength (Cold Drawn): Approximately 54,000 psi (370 MPa).
Tensile Strength (Cold Drawn): Approximately 64,000 psi (440 MPa).
While 54,000 psi is respectable for general-purpose applications like pins, rods, and mounting plates, it pales in comparison to alloyed steels. The beauty of 1018 isn’t its raw power, but its ductility. If 1018 is overloaded, it will typically bend or stretch significantly before it snaps, providing a visual warning of failure.
Pro Tip: If your application involves high-pressure environments or structural loads that exceed 50,000 psi, 1018 is likely to “mushroom” or deform, making it a poor choice for precision load-bearing components.
Material Performance: 4140 Steel Properties
If 1018 is the “vanilla latte” of the steel world—reliable and everywhere—then 4140 is the “double espresso.” It is built for intensity.
The most impressive 4140 steel properties stem from its ability to be “through-hardened.” Unlike 1018, which can only be surface hardened (case hardening), 4140 can be heat-treated so that its strength is consistent from the surface all the way to the core.
Key Mechanical Properties of 4140 (Annealed vs. Hardened):
Yield Strength: Can range from 60,000 psi in an annealed state to over 130,000 psi when quenched and tempered.
Fatigue Strength: Excellent. 4140 is designed to handle “cyclic loading”—repeated stress that would cause 1018 to develop microscopic cracks and eventually fail.
Toughness: Thanks to the molybdenum content, 4140 maintains high toughness even at high hardness levels, meaning it won’t become brittle and shatter under impact.
The Machinist’s Best Friend (and Enemy)
In the machine shop, “time is money.” How a material responds to a cutting tool determines how long a job takes and how many drill bits you’ll burn through.
The 1018 Advantage
1018 is widely considered one of the best-machining steels available. It produces long, continuous chips and is very “kind” to cutting tools. If you are producing thousands of small spacers or bushings on a CNC lathe, 1018 will allow for high spindle speeds and minimal tool wear.
The 4140 Challenge
4140 is certainly machinable, but it is “tougher” on tools. Because of its higher carbon and alloy content, it generates more heat during the cutting process. However, many shops prefer 4140 PH (Pre-Hardened). This version of the steel is already heat-treated to a moderate hardness (usually Rockwell C 28-32). While it’s harder to cut than 1018, it eliminates the need for post-machining heat treatment, which prevents the part from warping or shrinking after it’s finished.
Joining the Pieces
Not all steels play nice with a welding torch.
1018 Steel: This is the gold standard for weldability. Because the carbon content is so low, you don’t have to worry about the “Heat Affected Zone” (HAZ) becoming brittle. You can weld 1018 using MIG, TIG, or Stick methods with standard fillers (like E7018) without the need for pre-heating.
4140 Steel: Welding 4140 is a specialized task. If you weld it like mild steel, the area around the weld will likely crack as it cools. To weld 4140 successfully, you must pre-heat the material (usually to 400°F–600°F) and perform a slow, controlled cooling (post-weld heat treatment) to maintain structural integrity.
Cost and Availability: The Bottom Line
When comparing 1018 vs. 4140 steel, cost is often the deciding factor for high-volume production.
1.Price Point: 1018 is significantly cheaper than 4140. Generally, you can expect to pay 30% to 50% less for 1018 bar stock.
2.Inventory: Because 1018 is the standard for “general fabrication,” every metal supplier in the world carries it in every imaginable shape (round, square, flat, hex).
3.The “Hidden” Cost of 4140: Remember that the price of 4140 isn’t just the raw material. If you need it hardened, you must factor in the cost of heat-treating services and potentially grinding the part afterward to correct any thermal distortion.
Summary Comparison: At a Glance
Feature | AISI 1018 | AISI 4140 |
Common Name | Mild Steel / Low Carbon | Chromoly / Alloy Steel |
Yield Strength | ~54,000 psi | 60,000 – 140,000+ psi |
Hardening Method | Case Hardening Only | Through Hardening |
Machinability | 78% (Excellent) | 65% (Good) |
Weldability | Excellent | Fair (Requires Pre-heat) |
Best Use Case | Bushings, brackets, simple pins | Gears, crankshafts, high-stress bolts |
Final Verdict: Which One Should You Choose?
The choice between 1018 vs 4140 steel comes down to the environment the part will live in.
Choose 1018 if: Your project is budget-sensitive, requires extensive welding, or the parts won’t be subjected to extreme loads. It is perfect for jigs, fixtures, simple shafts, and everyday hardware.
Choose 4140 if: You are building something that must not fail. If your component faces high torque, heavy impact, or needs to be extremely hard to resist wear (like a gear tooth), the superior 4140 steel properties make it the only logical choice.
Frequently Asked Questions (FAQ)
Q:Can I use 1018 instead of 4140 for a car axle?
A:No. An axle is subject to immense torsional stress and fatigue. Using 1018 would likely result in the axle twisting or snapping under load. 4140 (usually heat-treated) is the industry standard for automotive driveline components.
Q:Does 4140 rust faster than 1018?
A:Both are carbon/alloy steels and will rust if exposed to moisture. However, the chromium in 4140 provides a slight increase in atmospheric corrosion resistance compared to 1018, though both require plating, painting, or oiling for long-term protection.
Q:Is 1018 steel “strong”?
A:”Strong” is relative. For a hobbyist project or a non-structural bracket, 1018 is plenty strong. However, in the context of industrial machinery, it is considered a low-strength material. Always refer back to the 1018 steel yield strength of 54,000 psi to see if it meets your safety factor requirements.
