Machined shafts are just a few of the many parts used in an equally vast number of industries, such as but not limited to automotive, aerospace, construction, and machinery manufacturing. They are exact, cylindrical parts that also function as critical load-bearing elements; they transfer rotational force while providing linear motion.

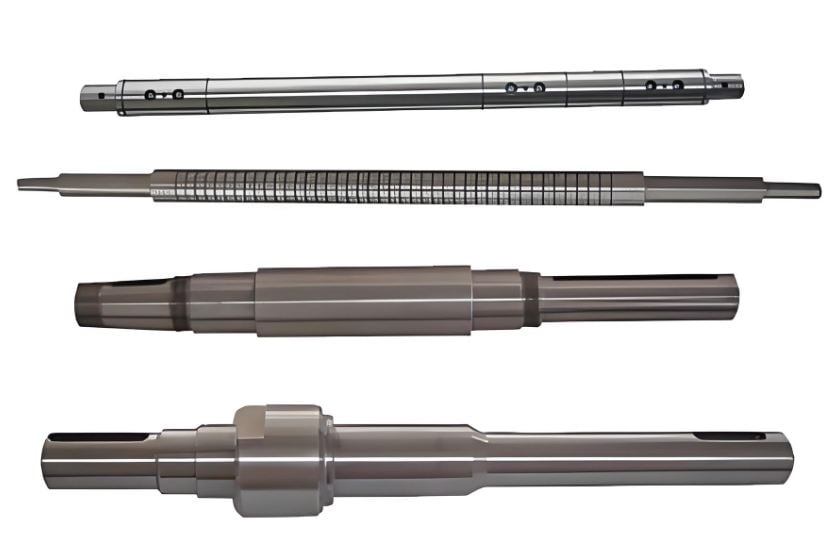

What Is A Machined Shaft?
A “machined shaft” refers to any cylindrical component created through various machining processes instead of directly from raw stock materials, rather than through cutting, grinding and polishing methods in order to meet precise dimensions, surface finishes and geometric accuracy requirements. A machined shaft typically undergoes rigorous cutting, grinding and polishing processes prior to being polished in order to meet these criteria.
Types of Machined Shafts
Each machined shaft type offers unique characteristics and must fulfill certain performance criteria such as load bearing capacity, rotational speed and operational environment. Here are some popular examples:
Transmission Shafts
Transmission Shafts play a pivotal role in power transmission systems, moving rotation from engines or motors to components like gearboxes or differentials.
Cam Shafts
Cam Shafts are Essential Components in Internal Combustion Engines Cam shafts play an integral part in maintaining precise timing and engine operation with their intricate profiles enduring intense cyclic loads which put their resilience through rigorous tests on an ongoing basis.
Spindle Shafts
A key component in machine tools, spindle shafts are integral for rotating cutting tools or workpieces at high speeds with accuracy. Their design requires exceptional precision, dynamic balance and rigidity for accurate operations at such fast speeds.
Actuator Shafts
Shafts are central components of linear actuators, providing rotational movement into linear motion. Their flexible yet strong nature enables them to withstand loads without losing precise positioning or control capabilities.
Pump Shafts
Pump shafts play an integral part of pumping applications, transmitting power from motor to impeller while moving fluid efficiently. In order to be reliable they must withstand corrosion as well as high fluid pressures without faltering in operation.


Materials Used for Machined Shafts
Manufacturers carefully consider strength, wear resistance, corrosion resistance and machinability when choosing materials for machined shafts. Here are some popular choices of material used:
- Carbon Steels:Carbon steel is widely acknowledged for its strength and cost-efficiency, making it the go-to material when manufacturing machined shafts. Due to their excellent machinability and heat treatments that further augment their mechanical properties.
- Alloy Steels:Steel alloys that include elements such as chromium, nickel and molybdenum provide superior strength, toughness and wear resistance when compared with plain carbon steels – ideal for applications within automotive and aerospace.
- Stainless Steels:Renowned for its corrosion-resistance and durability, stainless steel is often chosen for machined shafts operating in hostile environments or exposed to chemicals and moisture. Common grades are austenitic and martensitic stainless steels.
- Aluminum Alloys:Due to their light and corrosion-resistant properties, aluminum alloys have become increasingly popular as lightweight machined shafts for aerospace or high speed rotating equipment applications where weight plays an integral part.
- Brass and Bronze Alloys: Copper-based alloys like brass and bronze provide superior machinability, corrosion resistance, and self-lubricating capabilities that make them suitable for applications that involve low loads or require complex lubrication solutions.

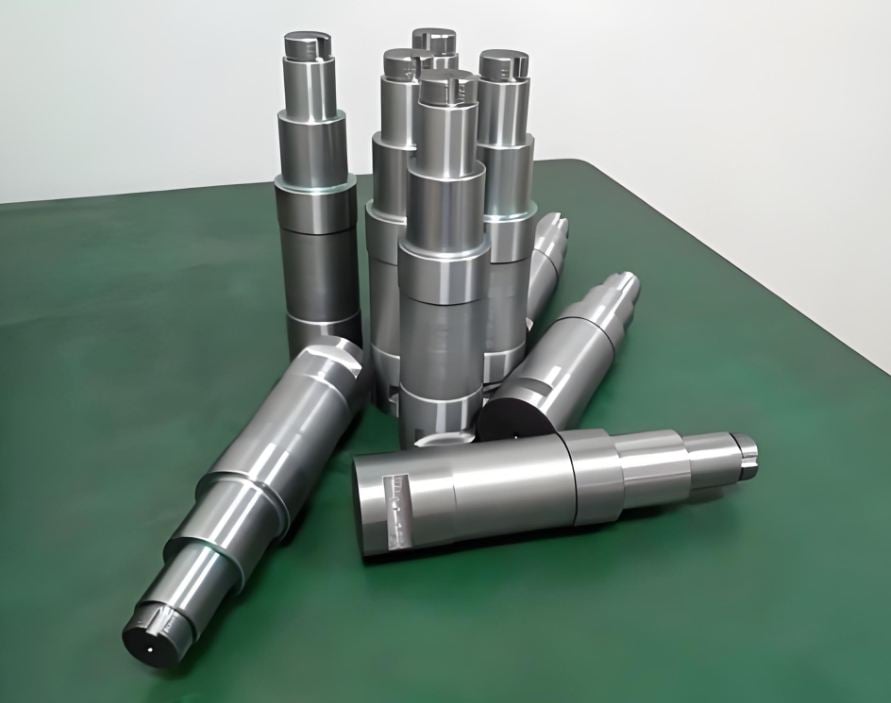

Manufacturing Precision Shafts Process
Producing precision-machined shafts requires several tailored manufacturing processes that strive to maintain maximum accuracy, surface finish and tolerances during their production process. These include processes designed to achieve accuracy in terms of surface finish quality as well as dimension tolerances.
-Turning: This fundamental machining operation involves rotating the workpiece against a cutting tool, removing excess material to achieve the desired cylindrical shape and dimensions.
–Grinding: After being turned, precision shafts often undergo further grinding processes in order to attain superior surface finishes and tighter dimensional tolerances. Cylindrical grinding, centerless grinding and plunge grinding are popularly employed methods used during shaft manufacturing.
–Honing: Honing is a highly specialized abrasive machining technique used to improve surface finish and geometric accuracy of bores or external cylindrical surfaces, such as bores containing high loads or those needing precise fitting. Honing can be particularly useful when working with components subject to extreme loads that demand precise fits.
–Lapping: is an abrasive process used to refine surface finishes and attain tight tolerances on precision shafts; often serving as the final finishing operation in critical applications.
–Surface Treatments for Precision Shafts: Precision shafts may benefit from receiving special surface treatments such as nitriding, coating or plating in order to increase wear resistance, corrosion resistance or lubricity for increased service life and performance under demanding environments.


Surface Finishing Options for Custom Machined Shafts
Finishing custom machined shafts is an integral step in their production as it enhances aesthetic appeal, surface smoothness and corrosion resistance. There are various surface finishing solutions available when producing custom made shafts to increase aesthetics and corrosion resistance.
Anodizing (for aluminum shafts)
Anodizing aluminum shafts serves two key purposes; first is increasing corrosion and wear resistance and secondly is creating an indestructible oxide layer resistant to corrosion and wear.
Electroplating
Electroplating’s primary goal is to enhance surface properties like corrosion resistance and wear resistance; metal ions in solution coat a shaft with another metal such as chrome or nickel for maximum efficacy.
Powder Coating
Powder Coating’s purpose is to protect surfaces against wear- and corrosion-induced damage while at the same time adding aesthetic value. poudre material applied electrostatically then heated until hardens into an impregnable protective covering that stands up over time.
Passivation (for stainless steel shafts)
Passivation (for stainless steel shafts) serves to increase natural corrosion resistance of stainless steel while simultaneously flushing away iron contaminants that might remain. An acid solution is used in this treatment in order to do just this.
Black Oxide Coating
Black Oxide Coating Purposes and Applications: Improve corrosion resistance while decreasing light reflection. Implemented through: Chemical bath that converts surfaces to black oxide coating.
Thermal Spraying
Thermal Spraying can enhance surface properties like hardness, corrosion resistance and wear resistance by melting powdered or wire form material and spraying it onto desired areas of surfaces.
Applications of Machined Shafts
Machined shafts play an essential part in various mechanical systems that involve rotation or torque, such as steering.
- Automotive Industry
Automotive Industry Shafts have two purposes in the automotive industry – transmitting torque and rotational power and specific applications like driveshafts are designed for. Driveshafts transport torque from engines to wheels. Camshafts and crankshafts play important parts in engine operation by controlling valve movements and piston positioning, among other roles.
- Aerospace Industry
This industry encompasses components that make up propulsion and control systems in aircraft and helicopters, including propulsion shafts that transmit power between turbines as well as actuator shafts used to adjust flaps or rudders are key parts.
- Industrial Machinery in Use today
Purpose and Specific Applications of Power Transmission in Heavy Machinery and Industrial Equipment.
Shafts used to move materials across facilities as well as pumps and compressors which utilize fluid or air movements are among the many instances when heavy duty transmission may be necessary for operation.
- Energy Sector
Transferring mechanical power in energy production systems. Applications: Shafts found on wind turbines that convert wind energy to mechanical energy as well as those found in hydroelectric plants and steam turbines can serve this function, among many others.
- Marine Applications
It provides power transmission between propeller shafts connected to propellers which transmit engine-generated energy for movement of vessels as well as generators used to produce energy for power production and distribution.
- Agricultural Machinery
The primary function of farm equipment transmission shafts is efficient power transfer to various attachments or implements; specific examples being tractor shafts which power various attachments/implements.
Conclusion
Machined shaft manufacturing is a complex process that requires expertise and experience.EASIAHOME boasts an experienced team of engineers dedicated to machined shaft design and engineering that can assist you with selecting material suitable for your machined shaft project, choosing appropriate performance specs and meeting application needs.
