Aluminum alloys are highly machinable and ductile, with properties such as a good strength-to-weight ratio and high thermal conductivity, so much so that aluminum CNC machining services have become an integral part of modern manufacturing. This precision machining process involves the use of computer-controlled tools to remove material from aluminum workpieces, resulting in the manufacture of highly accurate and complex parts.
In this article, we will explore the many benefits of aluminum in CNC machining, delve into the various applications of aluminum, and provide valuable suggestions for optimizing the process.
What is Aluminum CNC Machining?

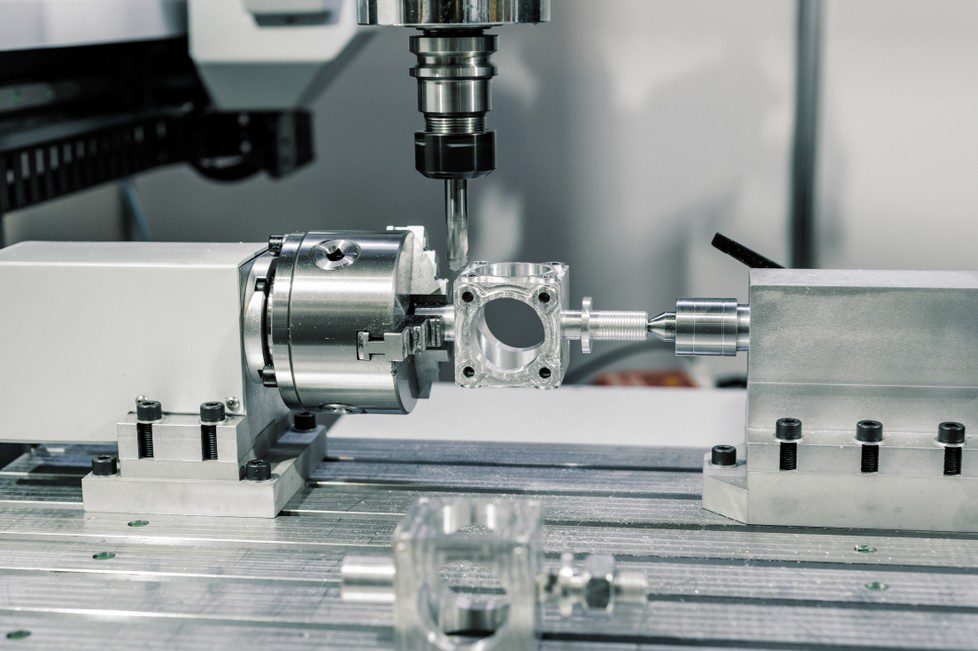

Aluminum CNC Machining refers to the process of using computer numerical control (CNC) machines to precisely cut, shape, and finish aluminum materials into desired components. This involves automated tools that follow programmed instructions to perform complex tasks with high accuracy. The lightweight, corrosion-resistant, and malleable properties of aluminum make it an ideal material for CNC machining. This process is widely used in industries such as aerospace, automotive, and electronics, where precision and reliability are paramount
Common Aluminum Alloys for CNC Machining
Aluminum 7075
This alloy is known for its high strength and is commonly used in aerospace and other applications requiring high strength. It has low corrosion resistance, but performs well under high stress conditions.
Aluminum 2024
Known for its excellent strength and fatigue properties, this alloy is suitable for aerospace applications. However, it has low corrosion resistance and therefore usually requires coating protection.
Aluminum 6061
One of the most commonly used aluminum alloys, popular for its good strength-to-weight ratio and excellent machinability. It is suitable for a variety of applications, from construction to electronic equipment.
Aluminum 5052
With good corrosion resistance and weldability, this alloy is commonly used in marine environments or in applications requiring corrosion resistance.
Aluminum 6063
This alloy is well suited for architectural profiles due to its excellent extrudability and surface finish.
Aluminum 7050
A balance of high strength and good toughness, this alloy is commonly used in aerospace structural components.
Aluminum MIC-6
A precision machined aluminum alloy used extensively in the manufacture of molds and fixtures that require a high degree of precision and flatness.
Compare Aluminum Materials Properties
Aluminum Materials | Tensile Strength, Yield (MPa) | Fatigue Strength (MPa) | Elongation at Break (%) | Hardness (Brinell) | Density (g/cm³) |
7075 | 505 – 590 | 159 – 230 | 9 | 150 | 2.81 |
2024 | 290 – 400 | 138 | 10 | 120 | 2.78 |
6061 | 240 – 270 | 96 | 12 | 95 | 2.70 |
5052 | 193 | 117 | 12 | 60 | 2.68 |
6063 | 130 – 240 | 62 | 18 | 73 | 2.70 |
7050 | 490 – 530 | 159 | 8 | 150 | 2.83 |
MIC-6 | 138 – 240 | Not rated | 3 | 65 – 90 | 2.70 |
This table gives an overview of the mechanical properties of popular aluminum alloys, useful for comparing materials in different applications like aerospace, automotive, and structural components.
Benefits of Aluminum CNC Machining
Aluminum CNC machining offers numerous advantages, making it a popular choice for various industries.
- Excellent Machinability: One of the most appealing traits of aluminum is its ease of machining. It allows for faster cutting, precise detailing, and reduced tool wear. This leads to lower production times and costs, all while maintaining accuracy.
- Low Cost: Compared to many other metals, aluminum is more affordable. Its availability and cost-effectiveness make it a highly economical option for mass production without sacrificing quality.
- Low Weight:Aluminum’s lightweight nature is especially beneficial in industries like aerospace and automotive, where reducing the weight of components is critical for performance and fuel efficiency.
- Overall Versatility:Aluminum’s versatility means it can be used in various applications, from structural components to electronic housings. Its ability to be easily machined into complex shapes adds to its flexibility.
- High Strength & Hardness:Despite being lightweight, aluminum maintains impressive strength and hardness, making it suitable for structural applications requiring durability.
- Heat Tolerance:Aluminum has excellent heat tolerance, performing well even in high-temperature environments, such as in engines or industrial machinery.
- Electrical Conductivity:Aluminum is a good conductor of electricity, making it ideal for electrical and electronic components where both conductivity and weight reduction are priorities.
- Corrosion Resistance:The natural corrosion resistance of aluminum allows it to endure outdoor exposure and harsh conditions without degrading, increasing the longevity of machined parts.
Finishing Options for CNC Machined Aluminum Parts
When it comes to finishing aluminum CNC machined parts, anodizing is one of the most popular and effective treatments. Anodizing enhances the surface by increasing corrosion resistance, improving aesthetics, and offering a variety of finishes. There are three main types of anodizing processes used for aluminum parts:
- Type I – Chromic Acid Anodizing
Type I anodizing, also known as chromic acid anodizing, is the thinnest anodized layer. This process uses chromic acid to create a protective oxide layer, typically between 0.5 to 18 microns thick. It is ideal for parts that require minimal dimensional changes but still need corrosion resistance. The finish is slightly dull, making it useful for non-decorative applications. Additionally, chromic acid anodizing is less aggressive, reducing the potential for surface damage on more delicate components.
- Type II – Sulfuric Acid Anodizing
Type II anodizing uses sulfuric acid and is the most commonly used method for aluminum anodizing. It produces a thicker oxide layer than Type I, ranging from 1.8 to 25 microns. This type of anodizing offers better corrosion resistance and allows for coloring the aluminum in various shades, making it suitable for decorative as well as functional purposes. It strikes a balance between protection and aesthetic options, commonly seen in consumer products and automotive parts.
- Type III – Hardcoat Anodizing (Hard Anodizing)
Type III anodizing, or hardcoat anodizing, forms a much thicker and harder oxide layer (up to 100 microns) compared to Type I and Type II. This method is used in applications where high wear resistance, durability, and superior corrosion protection are required, such as in aerospace or heavy machinery components. The resulting layer is very robust, offering significant protection against abrasion and environmental conditions. Hard anodized parts are typically dark in color, often gray or black, and they can withstand higher levels of mechanical stress.

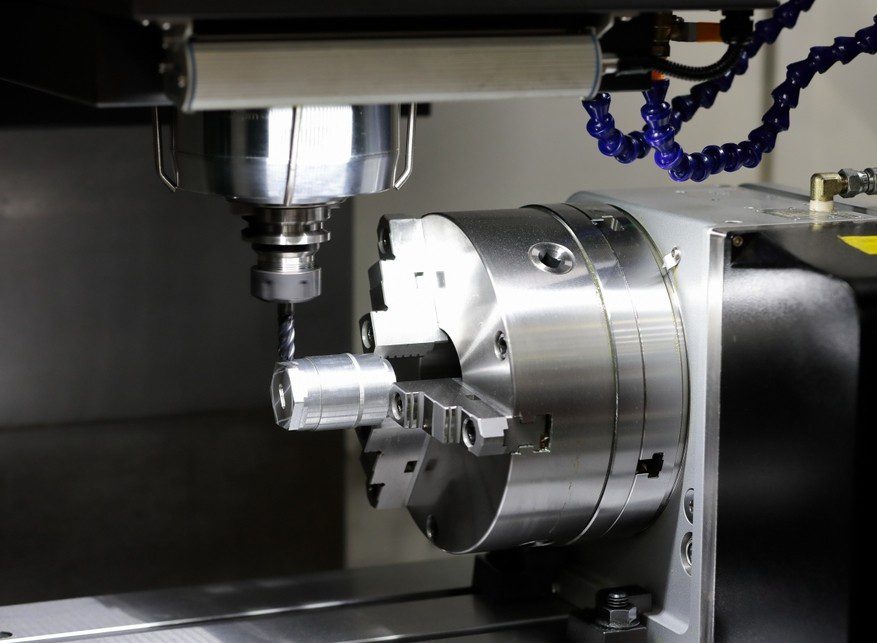

Common Aluminum CNC Machining & Processing Techniques
Aluminum is widely used in CNC machining due to its versatility and machinability. Common techniques include:

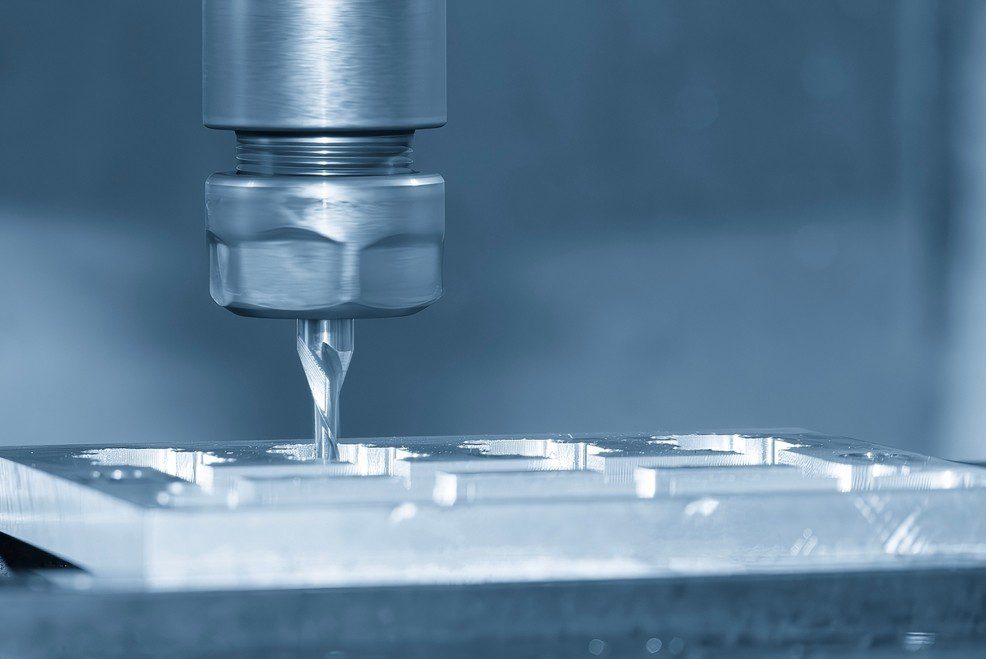

-Milling: Used to create precise cuts, slots, and contours. CNC milling is ideal for complex shapes and geometries.
-Turning: Effective for producing cylindrical parts like shafts or bushings. CNC turning ensures smooth surfaces and dimensional accuracy.
-Drilling: Employed for creating holes in specific locations, drilling is often combined with tapping for threaded holes.
-Grinding: Applied for surface finishing, grinding ensures a smooth, polished appearance.
-Tapping: Creates internal threads within a hole for screw attachment.
Tips and Considerations for CNC Machining in Aluminum
When CNC machining aluminum, there are several tips and considerations to ensure optimal results:
- Tool Selection
Use sharp, carbide-tipped tools to handle aluminum’s softness and prevent material buildup on the tool.
- Cutting Speeds
Aluminum allows for high cutting speeds, which help in achieving a smooth surface finish and shorter machining times.
- Coolant Use
Applying coolant reduces heat buildup, prevents tool wear, and improves the cutting process.
- Chip Evacuation
Proper chip removal is critical to avoid clogging and ensure efficient machining, especially with high-speed operations.
- Workpiece Clamping
Securely clamp the aluminum part to prevent vibration and movement during machining.

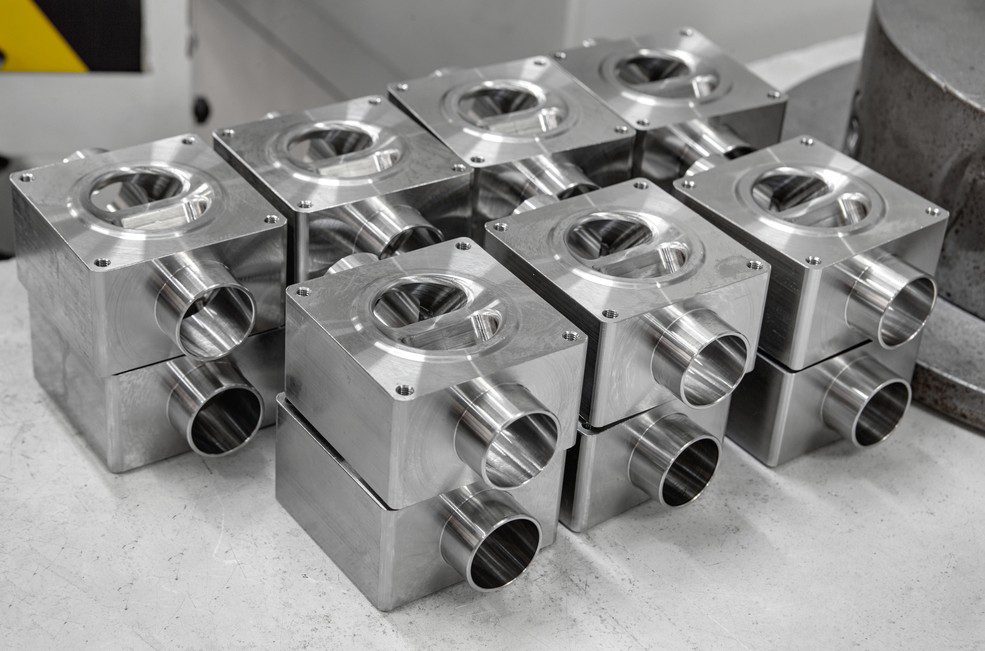

Applications of Aluminum CNC Machined Parts
Aluminum CNC machined parts are widely used across various industries due to their strength, lightweight nature, and versatility:
- Automotive Components:Aluminum parts like engine components, brackets, and heat exchangers are popular in automotive applications, reducing weight and improving fuel efficiency.
- Aerospace Housings, Mounts, and Other Parts:The high strength-to-weight ratio of aluminum makes it ideal for aerospace applications, such as structural components, brackets, and housings that require durability without adding excess weight.
- Fixtures, Calipers, and Various Other Parts:Aluminum is often used for custom jigs, fixtures, and measurement tools due to its machinability and stability.
- Consumer and Computer Electronics:From smartphone frames to laptop enclosures, aluminum offers an aesthetic, durable, and lightweight solution for electronic devices.
EASIAHOME CNC Machining Services for Aluminum Parts
Are you looking for a reliable, quick-turn supplier of machined aluminum components? With 20 years of aluminum CNC machining experience,EASIAHOME can provide rapid prototyping and low and high volume production of machined aluminum parts for global customers in multiple industries.
Q: What Types of Aluminum are Commonly Used in CNC Machining?
A: The most commonly used types of aluminum for CNC machining are 6061 and 7075. Aluminum 6061 is versatile and cost-effective, suitable for general-purpose machining, while 7075 is much stronger and used in high-stress applications like aerospace components.
Q: Why is Aluminum Preferred for High-Volume Production?
A: Aluminum’s excellent machinability allows for faster cutting and reduced tool wear, making it cost-effective for high-volume production. Its lightweight and strength also make it suitable for various industries without compromising performance.
Q: How does Anodizing Improve CNC-machined Aluminum Parts?
A: Anodizing enhances the corrosion resistance, surface hardness, and aesthetic appeal of aluminum parts. It also allows for color customization and provides a protective layer, extending the part’s durability in harsh environments.
Q: What are the Limitations of CNC Machining Aluminum?
A: While aluminum is highly machinable, some limitations include burr formation during cutting and tool wear if not properly managed. Additionally, the lightweight nature of aluminum may not be ideal for applications requiring very high weight-bearing capacity.
Q: How can I Ensure the Best Surface Finish for Aluminum CNC Parts?
A: Achieving the best surface finish for aluminum involves using sharp cutting tools, applying proper coolant, and optimizing cutting speeds. Post-machining treatments like polishing or anodizing can also enhance the surface quality.
