Among the various materials used for CNC machining projects, stainless steel stands out for its durability and corrosion resistance, making it ideal for a wide range of applications. Stainless Steel CNC Machining is a specialized process that involves shaping stainless steel parts using computer-controlled machines. This method not only ensures precision but also enhances the efficiency of manufacturing complex parts.This article will explore the various aspects of stainless steel CNC machining, including its types, benefits, and essential tools.
What is Stainless Steel CNC Machining？

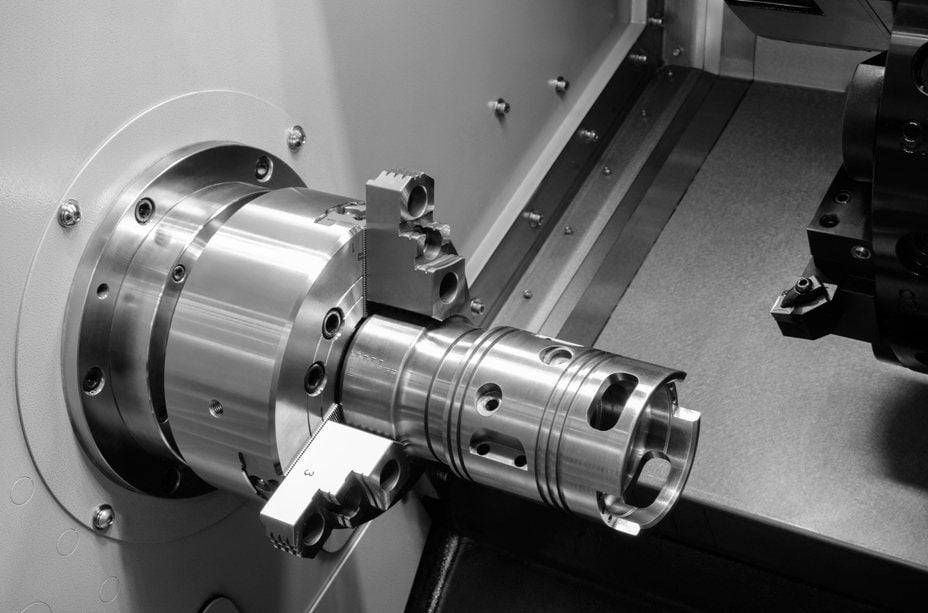

CNC Machining for Stainless Steel Parts is a highly precise method used to shape and manufacture components from stainless steel using computer numerical control (CNC) machines. This process combines advanced software with mechanical precision to cut, mill, and drill stainless steel parts with exceptional accuracy. The strength and corrosion resistance of stainless steel make it a preferred material in various industries, including aerospace, automotive, and medical devices. By utilizing CNC machining, manufacturers can produce intricate designs that meet exact specifications, ensuring both quality and efficiency in production.
Types of Stainless Steel for CNC Machining
Stainless steel is a versatile material widely used in CNC machining for its corrosion resistance and strength. The main types include austenitic, martensitic, ferritic, duplex, and precipitation-hardening stainless steels.
Austenitic Stainless Steel
Austenitic stainless steels are the most common type used in CNC machining, known for their excellent corrosion resistance and formability. This type includes grades like 304 and 316, which are non-magnetic and maintain their properties across a wide temperature range.
Martensitic Stainless Steel
Martensitic stainless steels are known for their high strength and hardness. They are typically used in applications requiring wear resistance and toughness. Unlike austenitic types, martensitic steels can be hardened through heat treatment, making them ideal for machining cutting tools or parts that experience high stress.
Ferritic Stainless Steel
Ferritic stainless steels offer good corrosion resistance and are magnetic, commonly used in automotive and industrial applications. These steels are typically less expensive than austenitic types and are easier to machine. However, they have lower ductility, making them suitable for lower-stress applications in CNC machining.
Duplex Stainless Steel
Duplex stainless steels combine features of both austenitic and ferritic types, offering high strength and improved corrosion resistance. Their balanced structure makes them ideal for demanding CNC machining tasks, particularly in the chemical, oil, and gas industries, where durability and toughness are critical.
Precipitation-Hardening Stainless Steel
Precipitation-hardening stainless steels are known for their ability to gain exceptional strength through a heat treatment process. These steels are used for CNC machining applications that require high-performance materials, such as in aerospace and medical industries, where components need to be both strong and lightweight.
Properties of Stainless Steel
- Corrosion Resistance
Stainless steel is highly valued for its corrosion resistance. The presence of chromium in its composition forms a passive layer on the surface, which protects it from rust and oxidation. This makes stainless steel suitable for harsh environments, especially in industries where exposure to moisture or chemicals is common.
- Resistant to High and Low Temperatures
Stainless steel maintains its properties across a wide range of temperatures. It performs well in both extremely high and low temperatures, making it ideal for applications such as cryogenic containers or high-temperature furnace components.
- Pure Power
Stainless steel is known for its strength. Depending on the grade, it can exhibit high tensile strength, making it ideal for heavy-duty applications.
- Long Service Life
Due to its durability and resistance to corrosion, stainless steel offers a long service life. This reduces the need for frequent replacements or repairs, making it a cost-effective material in the long run.
- 100% Recyclable
One of the environmentally friendly aspects of stainless steel is that it is 100% recyclable. This makes it a sustainable material for machining, as the metal can be reused without losing its quality.
- Aesthetically Pleasing Surface Finish
Stainless steel is often chosen for its aesthetic appeal. It has a sleek and shiny surface finish that enhances the visual quality of finished products.
Comparison of common Stainless Steel alloys
Alloy | Hardness (Vickers) | Ultimate Tensile Strength (MPa) | Yield Strength (MPa) | Elongation at Break (%) | Modulus of Elasticity (GPa) |
Stainless Steel 303 | 190-210 | 500-750 | 190-275 | 35-45 | 190-210 |
Stainless Steel 304 | 150-190 | 505-750 | 215-275 | 40-45 | 193 |
Stainless Steel 316 | 150-200 | 515-750 | 205-290 | 30-40 | 193 |
Alloy 400 Series | 170-230 | 620-960 | 240-380 | 25-35 | 180-200 |
17-4 PH | 350-460 | 930-1310 | 790-1080 | 10-15 | 195-205 |
2205 Duplex | 240-280 | 620-890 | 450-600 | 25-30 | 200-220 |
- Hardness (Vickers):17-4 PH has the highest hardness, making it ideal for high-strength applications, while 303 and 304 are softer.
- Ultimate Tensile Strength:17-4 PH and Alloy 400 Series exhibit the highest tensile strength, providing great resistance to fracture.
- Yield Strength:17-4 PH shows superior yield strength, meaning it can withstand significant stress before deforming.
- Elongation at Break:304 has high ductility, meaning it can stretch more before breaking, while 17-4 PH is less ductile.
- Modulus of Elasticity:Alloys have a similar modulus of elasticity, with slight variations, indicating comparable stiffness.
Benefits of Stainless Steel CNC Machining
-Machinability
Stainless steel offers good machinability when processed using modern CNC techniques. Certain grades, like 303, are specifically designed for easier cutting and shaping, improving production efficiency and precision.
-Corrosion Resistance
One of the standout benefits of stainless steel is its corrosion resistance. This makes it ideal for environments exposed to moisture, chemicals, or saltwater, ensuring longevity and minimal maintenance.
-Durability
Stainless steel is known for its durability, capable of withstanding high stress, wear, and harsh conditions, which enhances the service life of machined components.
-Tensile Strength
The high tensile strength of stainless steel allows it to handle significant loads without deformation, making it suitable for structural and load-bearing applications.
-Aesthetics
With a sleek, shiny finish, stainless steel is also aesthetically pleasing. This makes it a preferred material in industries that prioritize both functionality and visual appeal, such as architecture and consumer products.
-Hygiene
Stainless steel is easy to clean and maintain, making it a hygienic material commonly used in the food, medical, and pharmaceutical industries where cleanliness is critical.
Essential Tools and Equipment for Stainless Steel CNC Machining
- Carbide and Ceramic Cutting Tools
Carbide and ceramic cutting tools are widely used for stainless steel CNC machining due to their heat resistance and durability. Carbide tools are particularly effective for high-speed cutting and maintaining edge sharpness over longer machining times. Ceramic tools, though less common, are used in high-performance applications where high-temperature resistance is critical.
- High Pressure Coolant Systems
When machining stainless steel, the use of high pressure coolant systems is essential. These systems ensure efficient cooling, reduce heat buildup and extend tool life. The high-pressure water stream removes chips from the cutting zone, preventing tool damage and enabling clean machining.
- Rigid CNC Machines with Powerful Spindles
For machining stainless steel, CNC machines with high rigidity and powerful spindles are required. These machines need to handle the material’s toughness without excessive vibration or deflection. Machines equipped with multi-axis control offer better precision in complex shapes and geometries.
- Advanced Tool Holders and Vibration Dampers
Tool holders with vibration-damping features are critical for maintaining tool stability and prolonging tool life. Advanced damping systems help to absorb vibrations during cutting, ensuring a smooth surface finish on the workpiece and reducing the likelihood of tool failure during operations.
CNC Machined Stainless Steel Applications
Automotive
In the automotive industry, stainless steel is used for manufacturing parts like exhaust systems, engine components, and structural brackets due to its high strength, heat resistance, and corrosion resistance.
Marine
Marine applications benefit from stainless steel’s excellent corrosion resistance against saltwater, making it ideal for components like propellers, shafts, and hull fittings.
Transportation
The transportation industry relies on stainless steel for railway and public transport vehicles, where the material’s durability and wear resistance ensure longevity and safety under harsh conditions.
Architectural and Construction
In architecture and construction, stainless steel is valued for both its aesthetic appeal and strength, commonly used in facades, handrails, and structural reinforcements.
Food and Beverage Production
In food and beverage production, stainless steel is preferred for processing equipment, storage tanks, and machinery, due to its hygienic properties and ease of cleaning.
Medical
The medical industry uses stainless steel for surgical instruments, implants, and medical devices, thanks to its biocompatibility, hygiene, and corrosion resistance.
Aerospace
In aerospace, stainless steel’s high strength-to-weight ratio and heat resistance make it ideal for aircraft components, fasteners, and structural elements that must endure extreme conditions.
Military
The military uses CNC machined stainless steel for armored vehicles, weapons systems, and naval components due to its durability, strength, and resistance to extreme environments.
Surface Finishes For CNC Machined Stainless Steel Parts
Polishing: Polishing is commonly used to give stainless steel parts a smooth, reflective surface. It enhances the aesthetic appeal and removes minor imperfections, making it ideal for decorative or high-precision applications.
Powder Coating: Powder coating adds a durable, protective layer to stainless steel, improving its resistance to wear and corrosion. It’s available in various colors and finishes, offering both functional and aesthetic benefits.
Nickel Plating: Nickel plating adds a protective, corrosion-resistant layer to stainless steel, making it suitable for harsh environments. It also improves the appearance and durability of the parts.
Gold Plating: Gold plating provides excellent corrosion resistance and is used for luxury items or high-end electronic components due to its conductivity and aesthetic appeal.
Silver Plating: Silver plating enhances conductivity and corrosion resistance, making it ideal for electrical components and parts requiring high thermal conductivity and wear resistance.
Challenges and Tips for Stainless Steel CNC Machining
Challenges
Stainless Steel CNC Machining presents several challenges due to the material’s unique properties.
One of the primary difficulties is its tendency to work-harden, especially in alloys like 304 and 316. This results in tougher cutting conditions as machining progresses, which can reduce tool life and lead to uneven finishes.
Another challenge is the material’s toughness and resistance to deformation. This toughness can cause rapid tool wear, which can significantly impact efficiency and precision. As a result, it’s critical to use high-quality cutting tools and techniques to maintain productivity and precision.
Finally, Stainless Steel CNC Machining generates a significant amount of heat due to the material’s poor thermal conductivity. This concentrated heat can degrade tools quickly and affect part quality. Proper cooling and lubrication are essential to prevent overheating and extend tool longevity.
Tips
- Choose the right tools:Use high quality carbide or coated carbide tools.
- Optimize Cutting Parameters:Use slower cutting speeds, generally about 20-30% lower than for materials such as mild steel. Also use moderate to high feeds.
- Tool path optimization:Avoid unnecessary tool movements and minimize the number of machining operations to reduce work hardening.
- Use sharp cutting tools:Replace or resharpen tools regularly to ensure optimum cutting performance.
- Chip control:Control chip formation with chipbreakers or customized tool geometries designed to break chips into smaller, more manageable pieces to avoid tangling or clogging.
Why Choose EASIAHOME’S CNC Machining Services?
- Cost Savings: At EASIAHOME, we prioritize cost efficiency by optimizing processes and reducing waste during CNC machining of stainless steel. This enables customers to achieve high quality results at competitive prices.
- Eegineering Support:Our team of experts provides comprehensive engineering support to ensure that every project meets precise specifications, resulting in improved product design and functionality.
- Quality Assurance:We implement strict quality control measures throughout the CNC machining process to ensure that every part meets industry standards.
- Multiple Materials:EASIAHOME offers a wide range of stainless steel options including multiple types to meet the specific needs of different industries.
Frequently Asked Questions (FAQs)
Q: Is 304 stainless steel better than 316 for machining?
304 stainless steel is generally easier to machine and more cost-effective for most applications. However, 316 offers superior corrosion resistance, making it ideal for marine or chemical environments. The choice depends on the specific application needs.
Q: Why Choose Stainless Steel for CNC Machining Projects?
Stainless steel is favored for CNC machining due to its durability, high strength, and excellent corrosion resistance. These characteristics make it suitable for various applications, including those in medical, automotive, and food processing industries, ensuring longevity and reliability.
Q: What is the difference between CNC machining steel and aluminum?
CNC machining steel typically provides greater strength and durability, while aluminum is lighter and easier to machine. Steel requires more robust tools due to its hardness, whereas aluminum allows for faster production and easier handling, depending on project requirements.
Q: Is Stainless Steel Difficult to Machine?
Machining stainless steel can be challenging due to its hardness and tendency to work-harden. However, with the right tools, coolant, and machining parameters, it can be effectively processed.
Q: What are the Advantages of Stainless Steel?
The advantages of stainless steel include exceptional resistance to corrosion, high tensile strength, and durability. It is easy to clean, abrasion-resistant, and maintains its appearance over time, making it ideal for applications in various industries, including food and healthcare.
