The medical industry has always required sanitary components and equipment with high precision and tight tolerances. CNC machining provides the medical industry with unparalleled precision and reliability in medical components, including medical fluid line components. This article details the applications, advantages, and specific types of components that can be effectively produced by CNC machining in the manufacture of medical fluid line components.
Importance of CNC Machining in the Medical Field
High Precision and Consistency
One of the primary advantages of CNC machining is its ability to produce parts with high precision and consistency. The accuracy of CNC machining ensures that each Fluid Line Component maintains exact dimensions and shapes, which is essential for the reliable operation of medical devices.
Rapid Production and High Efficiency
CNC machining significantly shortens production cycles and improves manufacturing efficiency. The automated nature of this process allows for continuous operation, reducing downtime and increasing output.
Customization Capability
The flexibility of CNC machining allows for the customization of parts to meet specific medical needs. Medical devices often require bespoke Fluid Line Components that are tailored to unique patient requirements or specific device functions
Enhanced Safety and Reliability
Reducing human error is a significant advantage of CNC machining. The automated process ensures that each component is manufactured to exact specifications, minimizing the risk of defects.
Advantages of CNC Machining in Manufacturing Medical Fluid line Components
- Precision Machining
Capable of machining complex shapes and tiny components, tolerances as low as ±0.0001 inch (2.54 microns) can be achieved, allowing for the creation of complex shapes and components with microscopic dimensions.
- Material Versatility
Wide Range of Materials: CNC machining can process a wide range of materials, including plastics, metals (stainless steel, titanium, aluminum), and composites, as well as some medical fluid lines that require materials that are difficult to process using other manufacturing techniques.
- Complex Geometries
CNC machines are capable of producing complex medical fluid line assemblies with complex paths or multiple connection points. Fine details such as threading, engraving, etc. can also be processed.
- Speed and Efficiency
Compared to traditional methods, CNC machining can produce parts very quickly. It makes very efficient use of materials and generally produces less waste than other manufacturing methods. Using materials more efficiently saves costs and is better for the environment.
Main Medical Fluid Line Components

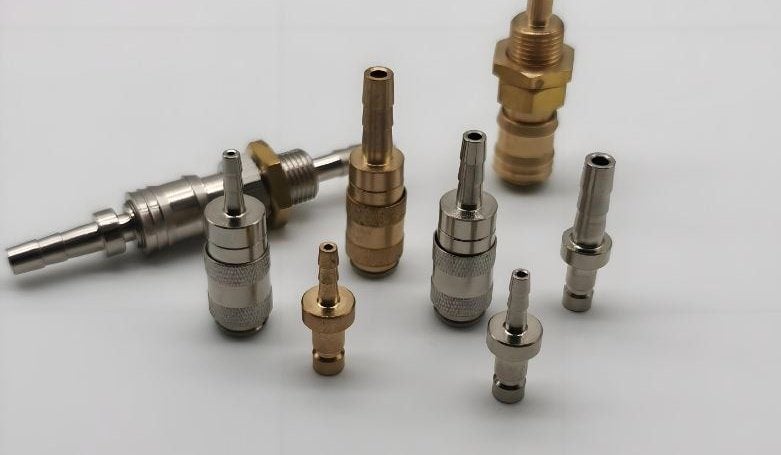

Joints and Connectors
Joints and connectors serve as critical interfaces between tubing and medical devices. The role of CNC machining here is to ensure that these components not only fit with absolute precision but also maintain robust sealing capabilities to prevent any leaks or contamination.
Here are some connectors:
- Fittings：Fittings include a variety of small, yet essential components used to connect sections of tubing or to adapt different sizes and types of connections within a fluid line system.
- Pipes: Pipes are often required to have specific dimensions and properties. CNC machining helps create pipes with precise diameters and wall thicknesses, ensuring consistent fluid flow rates and pressures.

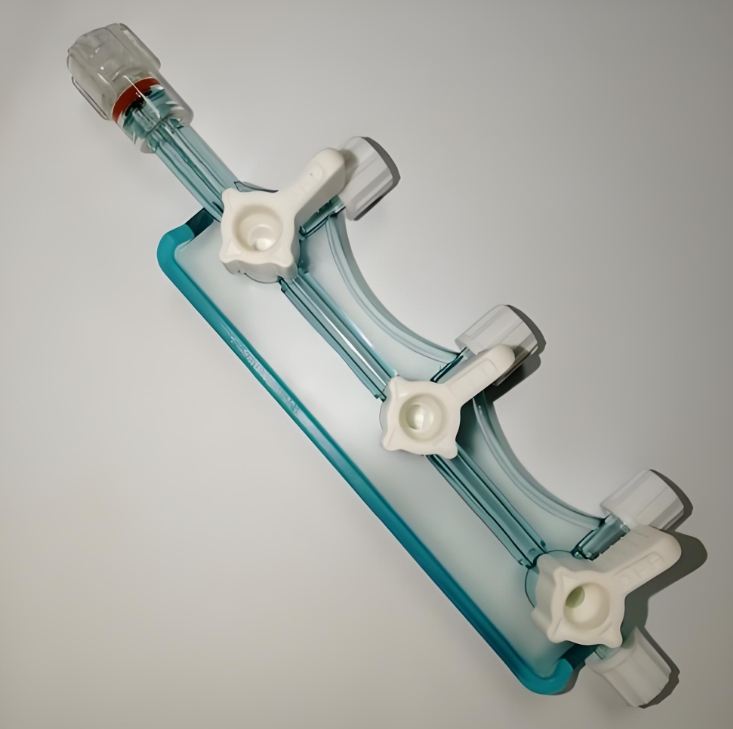

- Manifolds: Manifolds are used to distribute fluid from one inlet to multiple outlets. They have complex geometries and must be machined to precise specifications.
- Thermowell elbow: Thermowell elbow is a special accessory for protecting temperature sensors installed in fluid piping systems.
- Instrument Tees: Instrument Tees are T-shaped fittings that provide a branch connection in a piping system, enabling the integration of measuring or monitoring instruments. Through CNC machining, each tee is carefully designed to maintain the integrity of the fluid line while providing a seamless and secure connection point for instrumentation.
Valves
Control the flow and direction of fluids, CNC machining can produce high-performance tiny valves.
Here are some valves:
- Vent Valves: Vent Valves are designed to release trapped air or gas in a fluid circuit, ensuring the system does not experience vapor lock and operates efficiently.
- Diaphragm Valves: These valves control fluid flow through the movement of a flexible diaphragm. The diaphragm is located within the valve body and responds to changes in pressure.
- Bleed Valves: Similar to vent valves, bleed valves are used to remove unwanted air or other gases from the system. It prevents air bubble formation that could interfere with the device’s operation.
- Pinch Valves: By mechanically pinching a flexible tubing or diaphragm, these valves regulate the fluid flow. Pinch valves are particularly effective for handling slurries or liquids containing suspended solids because the closure mechanism does not involve contact with the fluid directly.

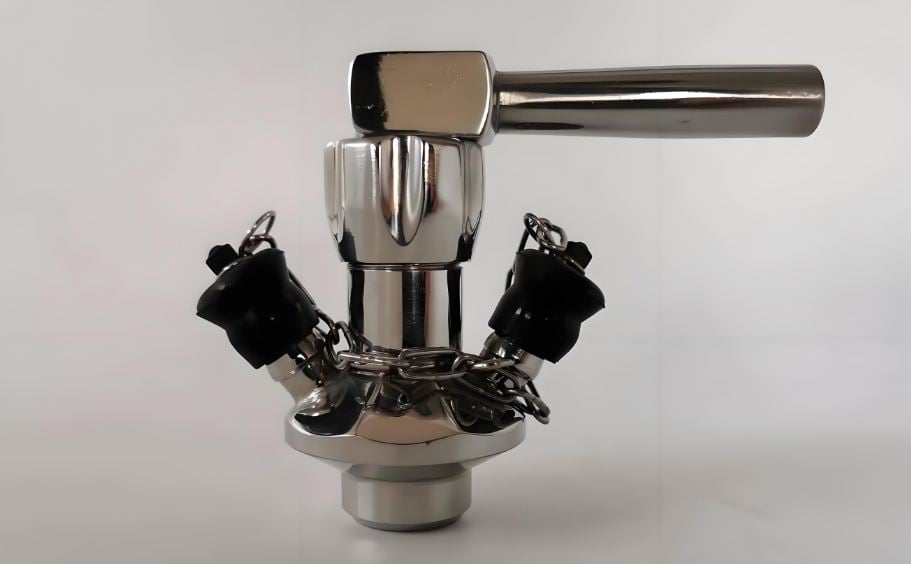

- Sample Valves: These are designed for taking samples of fluids for analysis without disrupting the ongoing processes within the system.

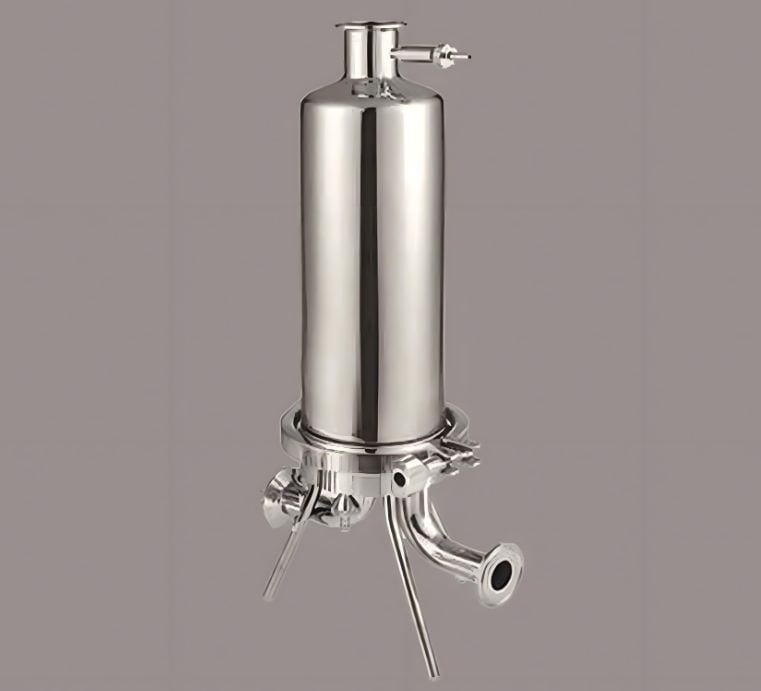

Filter housing
To protect the filter material and ensure the purity of the fluid, CNC machining can produce high-strength and high-precision housings.
Syringe parts
Such as needle seat, plunger and barrel, CNC machining can ensure its precision and smoothness.
Medical pump parts
Used to transport fluids, CNC machining can produce efficient and durable pump parts.
- Centrifugal Pumps: Commonly used for general fluid transfer, these pumps utilize a rotating impeller to move fluids through a piping system.
- Positive Displacement Pumps: These pumps move fluid by trapping a fixed amount and forcing (displacing) that trapped volume into the discharge pipe. Types include gear pumps, piston pumps, and peristaltic pumps.
- Diaphragm Pumps: Operated by a flexible diaphragm that goes up and down, these pumps are perfect for handling fluids that contain contaminants or particulate matter, as they do not require tight seals around moving parts.
- Gear Pumps: These use the meshing of gears to pump fluid by displacement and are well-known for their smooth, pulse-free delivery, making them suitable for applications requiring a consistent flow rate, such as in medical dosing systems.
- Peristaltic Pumps: Featuring a flexible tube compressed by rollers, these pumps prevent fluid contact with mechanical parts, maintaining fluid purity and sterility.
Conclusion
CNC machining has become an integral part of the medical industry due to its ability to produce parts with high precision, high consistency, high efficiency and adaptability to a variety of materials.
