The medical industry is rapidly evolving, with more and more medical devices and equipment being used. Medical device manufacturers use precision casting capabilities to create high-precision, tight-tolerance equipment, providing cost-effective solutions for the medical industry.
Medical Component Investment Castings

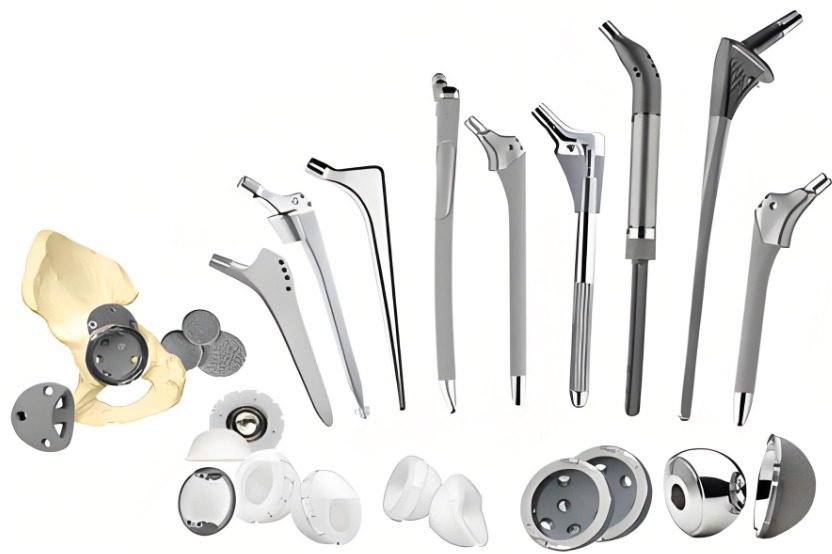

Orthopedic implants using investment casting can produce parts with complex geometries that are difficult to achieve with other manufacturing methods. The precision of investment casting ensures that each implant is close to net shape, requiring little to no machining. A wide range of medical parts can be manufactured, from surgical tools to diagnostic equipment components, from dental implants to orthopedic prostheses.
Investment Casting for Medical Implants
Medical implants are devices or tissues placed inside or on the body and must have a smooth surface. Any inconsistency or burrs can pose a risk to personal safety. Many implants are prostheses, used to replace missing body parts. Other implants are used to deliver drugs, monitor body functions, or provide support for organs and tissues. The smooth surface of precision castings fully meets the needs of medical components.
Materials Used in Investment Casting for Implants
The choice of materials for investment casting of medical implants is critical and includes stainless steel, titanium, and cobalt-chromium alloys. These materials are favored for their mechanical properties, corrosion resistance, and biocompatibility. Titanium, for instance, is highly valued for its strength-to-weight ratio and natural compatibility with human bone and tissue, making it an ideal choice for many orthopedic implants and dental implants.
Examples of Medical Implants Made Using Investment Casting

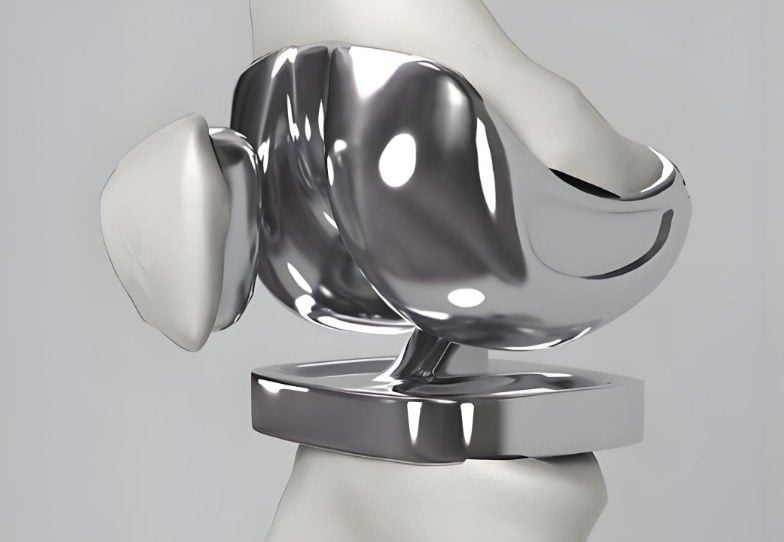

Orthopedic Implants

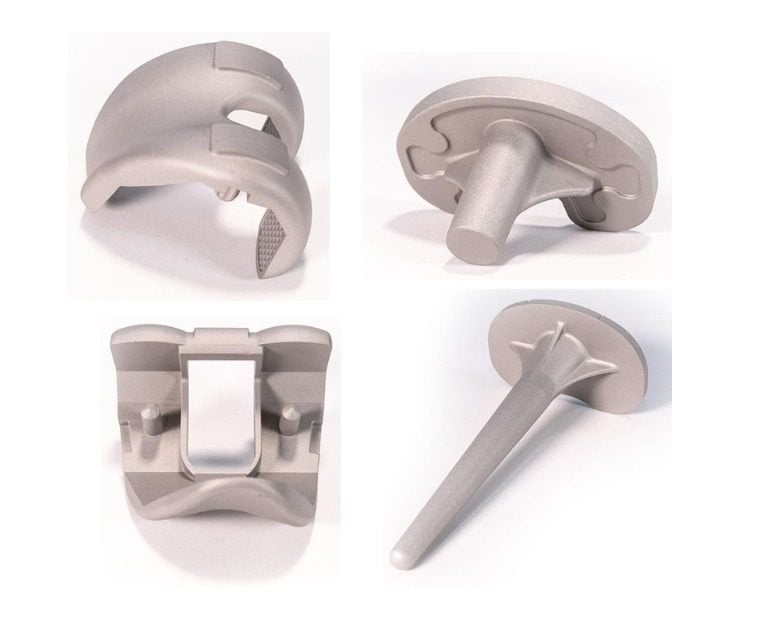

- Knee replacement implants: e.g. femoral components of the knee, tibial components of the knee, bipolar hip prostheses, these implants are typically cast from cobalt-chromium-molybdenum alloy to mimic the natural movement of the knee while providing durability and wear resistance.
Tibial Trays
Titanium tibial trays offer strong support and long-lasting performance under the stresses of body weight and movement.
Elbow, Shoulder, and Wrist Components
Investment cast in stainless steel, these components provide the necessary strength and precision alignment required for joint function and mobility.
Investment Casting for Surgical Instruments
Investment casting has revolutionized the production of surgical instruments by allowing the manufacture of complex designs with smooth surfaces and tight tolerances, providing a precise and efficient method of manufacturing complex medical tools. Investment casting is particularly well suited to the manufacture of a wide range of high-precision surgical instruments, including forceps, scissors, retractors and needle holders.
The process of designing and manufacturing surgical instruments
1. Understand the specific requirements of each instrument and use CAD software to create detailed 3D models of the instruments;
2. Create a wax model of the instrument, often using 3D printing technology to create complex shapes.
3. The wax model is coated with a ceramic material to form the mold.
4. The wax is melted leaving a cavity and molten metal is poured into the mold to create the instrument.
5. Post-casting processes include removing the ceramic shell, removing excess material, and performing finishing operations such as grinding, polishing, and heat treating.
Investment Casting for Dental Instrument
The role of investment casting in the manufacture of dental instruments

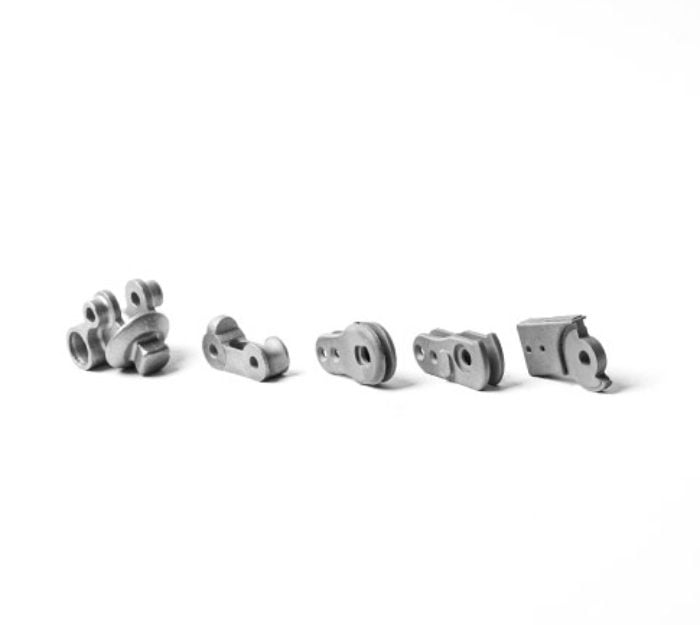

Medical investment casting plays a vital role in the production of high quality dental instruments and dental tools. This precision manufacturing process creates the intricate, sophisticated designs essential to modern dentistry. Dental instruments manufactured through investment casting include probes, scalers and a variety of specialized tools for procedures such as root canals and extractions, as well as dental implants and orthopedic bracket components.
Types of dental instruments commonly produced via investment casting
Medical investment casting is employed to produce a wide array of dental instruments and dental tools. Common items include periodontal probes, dental mirrors, extraction forceps, and root elevators.
The process is particularly effective for creating instruments with complex geometries, such as endodontic files and reamers used in root canal treatments. Investment casting also excels in manufacturing components for dental implants, including abutments and implant bodies, ensuring precise fit and optimal osseointegration.
Advantages of Using Investment Casting for Medical Industry
Precision casting has significant advantages in the medical industry.
1. Complex Shape: suitable for manufacturing parts with complex design, producing shapes that cannot be realized by any other metal forming technology.
2. Small Tolerances: parts with small dimensional tolerances can be mass produced.
3. Smooth Surface: Produces parts with smooth surfaces and excellent surface contours, requiring little additional machining.
4. High Accuracy: precise thin-wall capability
5. Short Cycle Time: the short cycle time of mold making in investment casting can quickly realize the transition from planning to production and shorten the time to market.
Why choose EASIAHOME as your medical investment casting supplies?
EASIAHOME is a leading precision foundry and machining manufacturer in China, offering a wide range of high-quality investment casting components and subsequent precision machining.
- Casting Materials: Stainless steel (400 series stainless steel, 17-4PH stainless steel, 15-5PH stainless steel), aluminum, carbon steel, brass and bronze.
- Casting Capacity: 5000 tons per year for castings, 2000+ per year for molds and tooling.
- Qualification: ISO 9001-2015, IAFT16949 certified, meeting high standards, which means being able to optimize your costs and reduce risks.
- Finishing Capability: Subsequent heat treatment, surface treatment. These include phosphate coating, polishing, hand polishing, passivation, pickling and electropolishing.
- Short Lead Times: Committed to on-time delivery, our lead times are among the fastest in the industry.
FAQ
A: Investment casting, also known as lost-wax casting, is a precision casting process used to create metal parts from almost any alloy, known for its ability to produce components with tight tolerances, complex geometries, and smooth finishes.
Q: Why is investment casting beneficial for the medical industry?
A: It allows for the creation of complex, precise components necessary in medical devices, which often require intricate designs and stringent specifications for safety and effectiveness.
Q: How does investment casting improve the surface finish of medical components?
A: The process offers excellent surface finishes, minimizing the need for additional machining. This is crucial for medical devices, which require smooth surfaces to prevent bacterial growth and ensure patient safety.
Q: How does the accuracy of investment casting compare with other metal forming techniques?
A: Investment casting provides superior accuracy, especially for creating thin-walled items and components with complex internal features, which are challenging to achieve with other metal forming methods.
Q: What is the typical lead time for developing a new medical component through investment casting?
A: While lead times can vary, investment casting generally allows for quicker mold making and rapid prototyping compared to other processes, speeding up the overall time to market.
Q: How does investment casting contribute to cost-efficiency in medical device manufacturing?
A: The process reduces the need for secondary machining and allows for the direct production of complex parts, decreasing labor costs and waste, and ultimately leading to more cost-effective production of medical devices.
