Different Types Of Heat Treatment Processes

Table of Contents

The heat treatment process involves the controlled heating and cooling of a material, usually a metal, to change its physical and mechanical properties without changing its shape. Heat treatment processes generally include four types: annealing, quenching, quenching, and stress relief. This operation enhances strength, flexibility, toughness, and hardness, making the material suitable for applications in a wide range of industries from automotive to aerospace.

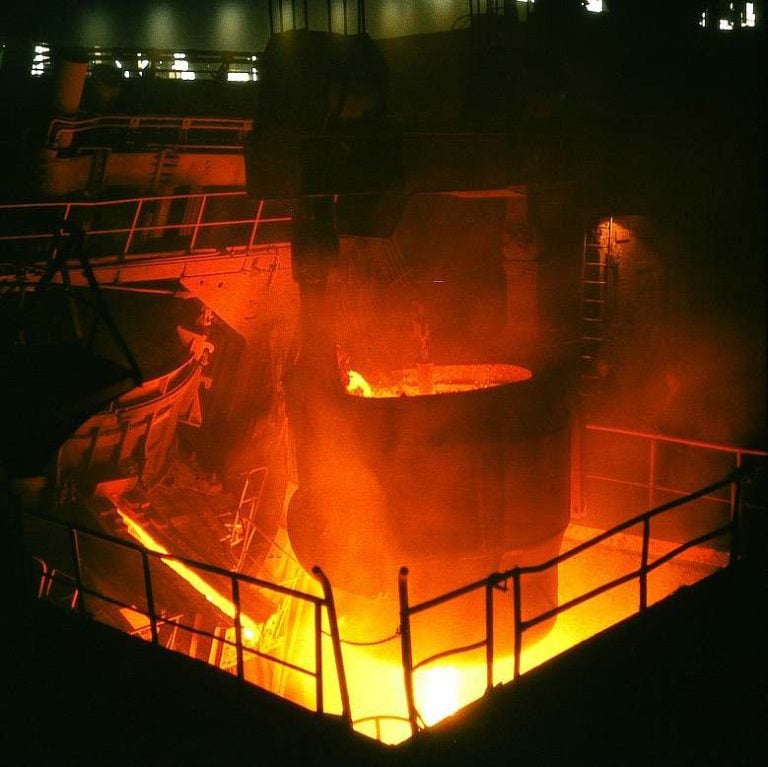

heat treatment process

Type 1- Annealing

Definition and Purpose of Annealing

Annealing is a critical heat treatment process primarily used in metallurgy. This technique involves heating a material (usually metal) to a specific temperature and then allowing it to cool slowly.

Objective: The main goal of annealing is to reduce the hardness of the metal, increase its ductility, and relieve internal stresses. This makes the material more malleable, facilitating easier machining and forming.

Process and Types of Annealing

  • Full Annealing: Involves heating the metal to slightly above its critical temperature and then cooling it slowly. The aim is to make the metal as soft as possible, enhancing ductility and reducing tensile strength.
  • Process Annealing: Used mainly in cold-working. Metals are heated to below their critical temperature to relieve stresses of cold working, without significantly altering the metal’s structure.
  • Spheroidizing Annealing: A specialized annealing aimed at creating spheroid or globular forms of carbides in high-carbon steels. It improves machinability and ductility, making the steel softer and more pliable for cutting and tooling applications.

Applications in Industry

Manufacturing and Shaping: Annealing is crucial in industries where metals need to be shaped or molded, such as automotive and aerospace.

Tooling and Machining: Process and spheroidizing annealing are particularly beneficial in the manufacturing of complex parts and tools. These processes help in making metals suitable for intricate machining and tooling operations.

Enhancing Mechanical Properties: Across various industries, annealing is employed to enhance the mechanical properties of metals, making them suitable for specific applications, whether it’s in construction, machinery, or transportation.

Type 2- Quenching

Quenching stands as a critical procedure within the spectrum of heat treatment processes. This method is primarily employed to enhance the hardness and strength of metals. By rapidly cooling a heated metal, quenching transforms its microstructure, resulting in significant changes in its mechanical properties.

Objectives of Quenching

  • Increasing Hardness: The primary goal of quenching is to enhance the hardness of metals. By rapidly cooling the metal, it transforms into a harder phase, making it more resistant to deformation and wear.
  • Improving Strength: Alongside hardness, quenching significantly increases the strength of the metal. This enhanced strength is essential for components that must withstand high-stress conditions.
  • Refining Microstructure: Quenching refines the microstructure of metals, resulting in improved mechanical properties and performance under various conditions.

Quenching Media and Their Effects

  • Water Quenching: Water is a common quenching medium known for its aggressive cooling rate. It is often used for steels that require a high degree of hardness. However, the rapid cooling can sometimes lead to cracking or warping.
  • Oil Quenching: Oil provides a slower cooling rate compared to water, reducing the risk of distortion or cracking. This medium is suitable for intricate or larger parts where uniform cooling is desired.
  • Air Quenching: Air, or forced air, offers the slowest cooling rate and is used for alloys that require very controlled cooling. It minimizes the risk of thermal shock but may not achieve the same hardness as water or oil quenching.

Common Uses in Metalworking

  • Tool Manufacturing: Quenching is extensively used in producing cutting tools, drills, and dies, where hardness is critical for performance.
  • Automotive Components: Parts like gears, shafts, and bearings are often quenched to ensure they can handle the stress and strain of automotive applications.
  • Aerospace Industry: High-strength, quenched components are crucial in aerospace applications, where materials must endure extreme conditions while maintaining structural integrity.

Type 3-Hardening

Hardening involves heating the metal to a specific high temperature, usually above its transformation range. This heat treatment alters the metal’s microstructure, predominantly turning it into austenite.

After reaching the desired temperature, the metal is rapidly cooled or quenched, usually in water, oil, or air. This sudden cooling transforms the austenite into martensite, a much harder and more brittle form of the metal.

Key Variables in Hardening

Temperature: It must be high enough to transform the metal’s structure but not so high as to cause unwanted grain growth or melting.

Time: This period needs to be long enough to allow the entire piece to reach and maintain the necessary temperature uniformly.

Cooling Rate: The rate at which the metal is cooled is a defining factor in hardening. Rapid cooling typically leads to a harder material, while slower cooling rates can lead to different microstructures and properties.

Impact on Durability and Toughness of Materials

  • By transforming the microstructure, hardening significantly increases the hardness and wear resistance of the metal. This transformation results in a material that can withstand greater mechanical stress and wear, making it ideal for high-stress applications.
  • However, it’s important to note that increased hardness often comes at the expense of decreased toughness. Hardened metals, while very resistant to abrasion and deformation, can become more brittle.
  • To balance hardness and toughness, a subsequent heat treatment process like tempering steel is often employed. Tempering adjusts the properties of the hardened metal, reducing brittleness while retaining much of its improved hardness.
Heat Treatment Processes
Heat Treatment Processes

Type 4 – Stress Relieving

Stress relieving is a vital heat treatment process used to reduce or eliminate the residual stresses that may be present in a material after other manufacturing processes, such as welding, machining, or cold working. Residual stresses can lead to premature material failure and reduced performance in critical components, making stress relieving a necessary step in many industries.

The stress relieving process involves heating the material to a specific temperature below its transformation range and then slowly cooling it. This controlled thermal cycle allows the material to relax and redistribute internal stresses, leading to improved dimensional stability and reduced risk of cracking or distortion.

Techniques and Applications in Reducing Residual Stresses

Heating and Soaking: The first step in stress relieving is heating the material uniformly to the prescribed temperature. The soaking period at this temperature allows for stress relaxation. The temperature and soaking time are determined based on the material type and thickness.



Slow Cooling: After the material has soaked at the stress-relieving temperature, it is gradually cooled at a controlled rate. Slow cooling minimizes the risk of introducing new stresses due to rapid temperature changes.

Benefits of stress relieving

– Reduced risk of cracking and distortion during subsequent machining or service.

– Improved dimensional stability, ensuring components meet tight tolerances.

– Enhanced fatigue resistance, extending the service life of parts.

– Minimized susceptibility to stress corrosion cracking and other forms of material degradation.

Applications

– Welded structures: Welding can introduce significant residual stresses, which stress relieving helps alleviate.

– Machined components: Materials that undergo extensive machining may experience internal stresses that can lead to deformation. Stress relieving ensures the parts maintain their shape.

– Castings and forgings: Large castings and forgings can have non-uniform internal stresses. Stress relieving helps homogenize the material’s stress distribution.

Comparative Analysis of Different Heat Treatment Processes

Heat Treatment Processes Description Suitable Materials Typical Applications
Annealing Heating the metal to a specific temperature and then cooling it slowly to increase ductility and reduce hardness. Copper, Silver, Brass Preparing metals for machining or deformation
Quenching Rapidly cooling heated metal, typically in water or oil, to increase hardness and strength. Steel (especially for tools and blades) Tools, blades, and components requiring high hardness
Hardening A two-step process involving heating the metal to a high temperature and then rapidly cooling it to increase hardness Steel and Iron Alloys Components requiring a combination of hardness and strength
Stress Relieving Heating the metal to a lower temperature than hardening, followed by a gradual cooling, to relieve internal stresses without changing the overall hardness. Various metals and alloys prone to stress after machining or welding Machined or welded parts to prevent warping and reduce brittleness

Conclusion

In conclusion, the understanding and application of annealing, quenching, hardening, and stress relieving are fundamental to the field of material science.

Annealing stands out for its ability to improve ductility and workability in metals like copper and brass, essential for machining and deformation processes.

Quenching is pivotal for creating components with high hardness and strength, such as tools and blades, by rapidly cooling metals to lock in certain microstructures.

Hardening, a process often used in conjunction with quenching, further enhances the hardness and strength of metals, particularly steel and iron alloys, for components that demand robustness.

Lastly, stress relieving is vital for reducing internal stresses in machined or welded parts, ensuring dimensional stability and reducing the risk of failure.

EASIAHOME is delighted to offer a variety of furnaces for various heat treatments, including annealing, quenching, tempering, and stress relief.
