Exploring the World of Casting: 10 Types of Casting Methods

Table of Contents

Casting is a versatile manufacturing process central to creating a myriad of everyday products. It involves pouring molten material into a mold cavity and letting it solidify. Understanding various casting methods is vital for those intrigued by manufacturing, engineering, or design. In this guide, we’ll explore types of casting processes, dive into the different types of casting, discuss the types of sand used in casting, and provide insightful casting examples.

Types of Casting
Types of Casting

1. Investment Casting (Lost Wax Casting)

Investment casting, also known as lost wax casting, is a precision-oriented casting process renowned for its ability to create intricate and high-quality components. This method is highly favored in industries where precision is paramount, such as aerospace, jewelry, agricultural machinery and medical equipment manufacturing.

The investment casting process commences with the creation of a wax pattern, which is an exact replica of the desired part. This wax pattern is then coated with a ceramic shell, creating a mold. The term “lost wax casting” stems from the fact that, during the casting process, the wax inside the mold is melted and “lost,” leaving a cavity that is subsequently filled with molten metal.

One of the key advantages of investment casting is its ability to produce complex parts with intricate details, tight tolerances, and a superior surface finish. This precision makes it ideal for crafting components like turbine blades, dental implants, and fine jewelry.

Investment casting offers engineers and designers a high degree of design freedom, allowing them to create parts with intricate geometries and minimal post-processing requirements. It is a testament to the marriage of craftsmanship and technology, enabling the creation of components that demand the utmost precision and reliability.

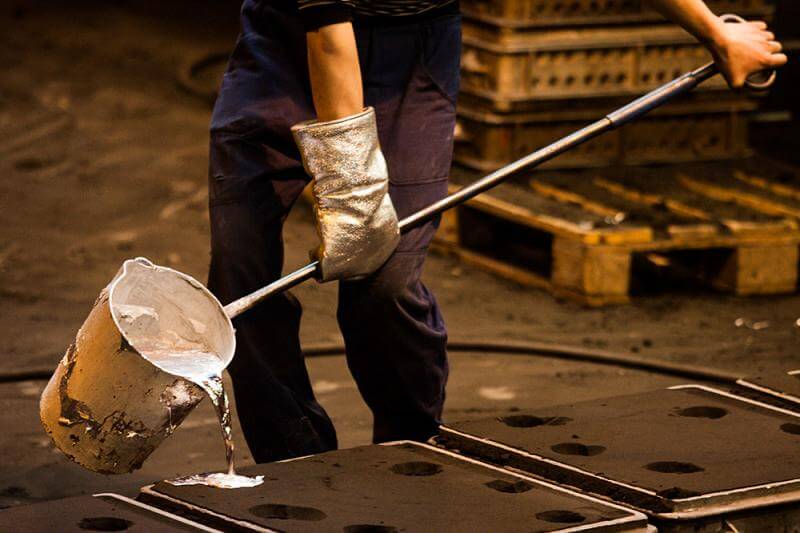

2. Traditional Sand Casting

Traditional sand casting is a fundamental and enduring casting method. This process, which we’ll explore, involves crafting intricate molds using various types of sand used in casting. We’ll also discuss practical casting examples to illustrate its significance.

Traditional sand casting is a time-honored technique that begins with crafting a pattern, followed by the formation of a sand mold around it. Molten metal is then poured into the mold, filling the void left by the pattern. As the metal cools, it solidifies into the desired shape. After breaking the mold, the casting is revealed.

The choice of sand is pivotal in this process, with silica, chromite, zircon, olivine, and ceramic sands offering different properties to suit various applications. This method finds use in crafting engine blocks, pump housings, artistic sculptures, and bronze bells, showcasing its versatility.

3. Die Casting

Die casting is a high-speed, highly automated casting process known for its ability to produce precise, complex, and dimensionally stable parts. This method is widely employed in the automotive, electronics, and appliance industries.



Die casting begins with the creation of reusable molds, called dies, typically made of hardened steel. These dies have two parts, the fixed die, and the ejector die, which come together to form a cavity. Molten metal, usually aluminum or zinc, is injected into the die under high pressure.

The advantages of die casting include its ability to produce parts with fine details and tight tolerances, making it ideal for applications where precision is crucial. Additionally, the process is highly automated, resulting in fast production rates and cost efficiency.

Die casting serves as the foundation for manufacturing various components, including automotive engine components, electronic housings, and consumer appliance parts. Its versatility and ability to handle high-volume production make it an integral part of modern manufacturing.

4. Permanent Mold Casting

Permanent mold casting is a versatile casting method known for its ability to produce parts with excellent surface finish and dimensional accuracy. This process utilizes reusable molds made of materials like steel or cast iron, making it well-suited for both small and large-scale production.

In permanent mold casting, the mold cavity is created by using a permanent, pre-made mold. Unlike sand casting, which uses disposable molds, permanent mold casting allows for consistent and repeatable production. The mold is typically preheated to enhance the flow and solidification of the molten metal.

One significant advantage of permanent mold casting is its suitability for producing parts with thin walls and intricate geometries. This makes it a preferred choice for components in the automotive and aerospace industries, such as cylinder heads, wheel rims, and aircraft engine components.

The process offers a balance between the cost-effectiveness of sand casting and the precision of die casting. It’s particularly valuable when high-quality, near-net-shape parts are required, and it provides an excellent surface finish with minimal post-processing.

5. Centrifugal Casting

Centrifugal casting is a unique casting method that relies on centrifugal force to produce cylindrical or tubular shapes. This process is particularly suitable for applications requiring high-density and defect-free parts, such as pipes, tubes, and rings.

The centrifugal casting process begins by pouring molten metal into a rotating mold. As the mold spins, centrifugal force pushes the molten metal toward the inner surface of the mold, creating a cylindrical shape. This method is highly efficient in removing impurities and gas inclusions from the casting, resulting in high-quality, dense parts.

There are two primary types of centrifugal casting:

True Centrifugal Casting: In this method, the mold rotates on a vertical axis, creating hollow cylindrical shapes. It’s commonly used for pipes and similar components.

Centrifugal Casting with Horizontal Axis: Here, the mold rotates on a horizontal axis, producing solid cylindrical shapes. This variation is suitable for producing items like railway wheels.

Centrifugal casting offers several advantages, including excellent mechanical properties, precise control over wall thickness, and minimal porosity. It is widely utilized in industries such as metallurgy, manufacturing, and aerospace, where the quality of the casting is of utmost importance.

6. Continuous Casting

Continuous casting is a highly efficient and continuous manufacturing process primarily used in the steel industry to produce long, uniform shapes such as beams, billets, and slabs. It represents a significant advancement in casting technology, offering several advantages over traditional methods.

The continuous casting process involves pouring molten metal into a water-cooled mold, typically made of copper. As the metal flows through the mold, it gradually solidifies, forming a continuous strand of metal. This strand is then cut into specific lengths to create the desired products.

Continuous casting offers several benefits, including improved product quality, reduced waste, and increased productivity. Since the process avoids the need for ingot casting and subsequent rolling, it results in a more refined microstructure, enhancing the mechanical properties of the final product.

This method is crucial in the production of steel, as it allows for consistent, high-quality output with minimal interruptions. It’s employed in industries such as construction, automotive manufacturing, and infrastructure development.

continuous-casting-process
continuous-casting-process

7. Vacuum Casting

Vacuum casting is a precision-oriented casting process that plays a vital role in producing high-quality, defect-free parts, especially in industries where impeccable quality is non-negotiable, such as aerospace and medical equipment manufacturing.

In vacuum casting, the mold is placed within a vacuum chamber before pouring the molten metal. This vacuum environment removes air from both the mold cavity and the molten metal. As a result, it eliminates the presence of air bubbles, gas inclusions, and impurities that can compromise the integrity of the casting.

One of the primary advantages of vacuum casting is its ability to create parts with exceptional metallurgical properties, ensuring consistent mechanical performance. This process is commonly used for critical applications like aerospace components, medical implants, and precision engineering, where any imperfection can have severe consequences.

Vacuum casting is a testament to the relentless pursuit of perfection in casting technology. It exemplifies how meticulous control over the casting environment can yield parts with superior quality and reliability. In an era where precision and quality are paramount, vacuum casting stands as a shining example of advanced manufacturing techniques.

8. Shell Molding Casting

Shell molding, also known as Croning casting, is a versatile and precise casting process that offers excellent surface finish and dimensional accuracy. It is widely employed in various industries, including automotive, aerospace, and pump manufacturing.

In shell molding, a mixture of high-quality resin-coated sand is used to create a shell-like mold. The process begins with the creation of a heated metal pattern, typically made of iron or steel, which is used to shape the mold. This pattern is repeatedly dipped into the sand-resin mixture, allowing a thin shell of sand to build up around it. Once the shell reaches the desired thickness, it is removed from the pattern, creating the mold cavity.

One of the key advantages of shell molding is its ability to produce intricate and thin-walled castings with minimal post-processing requirements. The process also allows for precise control over wall thickness and excellent surface finishes, making it suitable for applications where precision is crucial.

Shell molding is commonly used to manufacture components such as engine blocks, cylinder heads, and intricate pump housings. Its versatility, speed, and ability to produce high-quality castings make it a valuable technique in modern manufacturing.

9. Investment-Lost Foam Casting

Investment-lost foam casting, often referred to as the combination of investment casting and the lost foam process, is a versatile method used in industries such as automotive, aerospace, and engineering. This process brings together the precision of investment casting with the flexibility and cost-effectiveness of the lost foam technique.

In investment-lost foam casting, the process begins with the creation of a foam pattern that replicates the desired part. This foam pattern is then coated with a refractory material, creating a mold similar to the investment casting method. The assembly of foam and refractory is encased in a sand shell, and molten metal is poured into the mold, vaporizing the foam pattern while filling the cavity with the metal.

The combination of investment casting and lost foam offers several advantages, including the ability to create complex and intricate parts with high precision. It also reduces the need for pattern-making and tooling, making it cost-effective for low to medium production runs.

This method is frequently used in industries where precision and cost-effectiveness are both crucial factors, such as the manufacturing of engine components, industrial pumps, and specialized automotive parts.

10.  Ceramic Mold Casting

Ceramic mold casting is a precise and versatile casting method that leverages ceramic materials to create molds for producing intricate and high-quality metal parts. This technique is especially valued in industries where precision and fine detail are essential, such as aerospace, jewelry making, and art foundries.

Ceramic mold casting involves the use of ceramic materials, typically a mixture of refractory clays and silica, to craft the mold. The process begins with the creation of a master pattern, which can be made from various materials such as wax or plastic. This pattern is then encased in the ceramic slurry, forming a mold. Once the ceramic mold is dry, it is fired in a kiln to harden and strengthen it.

One of the primary advantages of ceramic mold casting is its ability to produce parts with exceptional surface finish and dimensional accuracy. The fine-grained nature of ceramics allows for intricate details and tight tolerances. This method is particularly suited for creating jewelry, art pieces, and aerospace components where high precision is non-negotiable.

Ceramic mold casting exemplifies how advanced materials and craftsmanship can result in top-quality castings. It provides a platform for producing parts with impeccable precision and is a testament to the synergy between traditional artistry and modern manufacturing.

Selecting the right casting method

In our exploration of casting methods, we’ve delved into 10 distinct techniques that showcase the diversity and innovation within the world of manufacturing. Let’s recap these methods, explore real-world examples of products created using them, and underscore the importance of selecting the right casting method for specific applications.

Different types of casting

                  Applications

Investment Casting

 Ideal for aerospace components and jewelry

Traditional Sand Casting

Used for engine blocks and pump housings

Die Casting

Employed in automotive and electronics industries

Permanent Mold Casting

Valued for aerospace and automotive parts

Centrifugal Casting

Used for pipes, tubes, and rocket nozzles

Continuous Casting

Vital for steel production in beams and billets

Vacuum Casting

Ensures high quality in aerospace and medical parts

Shell Molding

Creates engine components and pump housings

Investment-Lost Foam Casting

Balances precision and cost-effectiveness.

Ceramic Mold Casting

Achieves precision for jewelry and aerospace.

Real-world examples of products made through these processes include automotive engine blocks, fine jewelry, industrial pump housings, aerospace components, steel beams, medical implants, artistic sculptures, and more. Each casting method caters to specific requirements, ensuring the final product meets the desired quality, precision, and cost-effectiveness.
